Swage Nipple – Premium Pipe Fitting for Industrial Applications

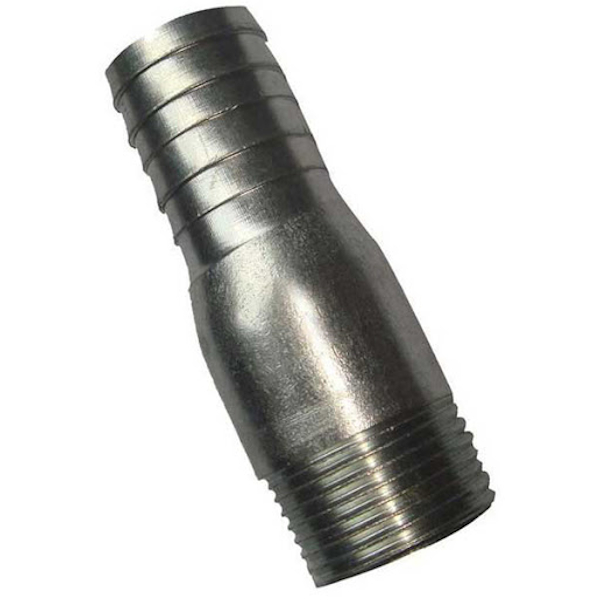

What is a Swage Nipple?

A Swage Nipple is an essential pipe fitting used to connect pipes of different diameters while maintaining system integrity under extreme pressure and temperature conditions. These fittings serve a crucial role in industries that require precise fluid flow management, including oil and gas, chemical processing, power generation, and marine engineering.

Swage Nipples are available in both concentric and eccentric designs, providing versatility for different pipeline layouts. Their construction using high-quality stainless steel, carbon steel, and alloy steel ensures long-lasting durability, corrosion resistance, and superior mechanical performance.

Key Features and Benefits of Swage Nipples

Swage Nipples play an essential role in industrial piping systems due to their robust construction, adaptability, and high-pressure performance. Our Swage Nipples are manufactured following strict industry standards, making them a reliable and long-lasting solution for connecting pipes of varying diameters.

1. Durability and Strength

• Manufactured from premium-grade materials such as stainless steel, carbon steel, and alloy steel.
• Engineered to withstand extreme pressures and temperatures in industrial environments.
• Resistant to mechanical stress, vibration, and impact, ensuring a longer service life.

2. Corrosion and Chemical Resistance

• Stainless steel and alloy steel variations offer excellent protection against corrosion, making them ideal for harsh environments such as marine and offshore applications.
• Resistant to chemical exposure, ensuring smooth operation in industries like chemical processing and power generation.

3. Versatile Size and Pressure Options

• Available in a wide range of sizes, from 1/8” to 8”, accommodating different pipeline requirements.
• Designed for high-pressure applications, with ratings of 3000#, 6000#, and 9000#, making them suitable for demanding industrial operations.

4. Easy Installation and Compatibility

• Offered with threaded or beveled ends, ensuring seamless integration with different pipeline systems.
• Conforms to ANSI B16.11 standards, providing universal compatibility with piping networks.
• Available in both concentric and eccentric types, allowing for customized installation based on system needs.

Applications of Nipples

Swage Nipples are widely used in various industries due to their efficiency in flow transition, secure pipe connections, and ability to handle high pressures.

1. Oil and Gas Industry

• Used in pipelines for upstream, midstream, and downstream processes.
• Essential for maintaining fluid integrity in refineries, drilling rigs, and natural gas plants.
• Helps to reduce turbulence and pressure loss, ensuring efficient fluid transportation.

2. Chemical Processing Plants

• Designed to handle aggressive chemicals and corrosive substances.
• Ensures leak-proof connections in pipelines that transport acids, solvents, and volatile substances.
• Maintains structural integrity under extreme temperatures and high-pressure conditions.

3. Power Generation Facilities

• Used in steam and gas turbine systems to manage high-temperature fluid transport.
• Helps maintain consistent flow dynamics, ensuring efficient power production.
• Resistant to heat stress and oxidation, making them ideal for boiler and cooling systems.

4. Marine and Offshore Industries

• Built to withstand saltwater exposure and harsh environmental conditions.
• Essential for shipbuilding, offshore oil rigs, and underwater pipelines.
• Prevents corrosion-related failures, ensuring long-term operational reliability.

Why Choose Our Nipples?

Our Swage Nipples are engineered with precision and manufactured to exceed industry standards. We ensure that each product undergoes rigorous quality control testing, ensuring dimensional accuracy, material strength, and leak-proof performance.

Key Advantages:

✔ Compliance with Global Standards – Manufactured according to ASTM A403, ASME B16.9, and ANSI B16.11.
✔ Leak-Proof & Secure Connections – Reduces the risk of system failures and enhances pipeline efficiency.
✔ High-Performance Materials – Available in stainless steel, carbon steel, and alloy steel for maximum durability.
✔ Customization Options – Available in multiple sizes, pressure ratings, and end connections.
✔ Bulk Order Discounts & Fast Delivery – Ideal for large-scale industrial projects with quick turnaround times.

Technical Specifications of Swage Nipples

Specification	Details
Material Options	Stainless Steel, Carbon Steel, Alloy Steel
Size Range	1/8” to 8”
Pressure Ratings	3000#, 6000#, 9000#
End Connections	Threaded, Beveled (ANSI B16.11)
Types	Concentric, Eccentric

Types of Swage Nipples: Concentric vs. Eccentric

Swage Nipples are available in two main designs, each catering to different pipeline configurations:

1. Concentric Swage Nipples

   • Design: The centerlines of the pipes remain aligned.
   • Best Used For: Vertical pipelines where fluid flow consistency is required.
   • Advantages: Ensures smooth transitions without causing turbulence or pressure loss.

2. Eccentric Swage Nipples

   • Design: The centerlines of the pipes are offset, creating an asymmetrical shape.
   • Best Used For: Horizontal pipelines where air pocket formation must be avoided.
   • Advantages: Prevents air accumulation, reducing the risk of cavitation and system inefficiency.

Frequently Asked Questions (FAQs)

1. What are Swage Nipples used for?

Swage Nipples are used to connect pipes of different diameters, ensuring seamless transitions in high-pressure and high-temperature systems. They are crucial for maintaining optimal flow rates and pressure balance in pipelines.

2. What materials are available for Nipples?

Our Swage Nipples are available in stainless steel, carbon steel, and alloy steel, providing options for corrosion resistance, high strength, and durability.

3. What is the difference between Concentric and Eccentric Swage Nipples?

• Concentric Nipples: Used in vertical pipelines where the flow transition needs to be centered.
• Eccentric Nipples: Used in horizontal pipelines to prevent air pockets and flow disruptions.

4. What industries use Nipples?

Nipples are widely used in oil and gas, chemical processing, power generation, marine, and offshore industries due to their high strength, corrosion resistance, and ability to handle extreme conditions.

5. What sizes and pressure ratings are available?

We offer Nipples in sizes ranging from 1/8” to 8”, with pressure ratings of 3000#, 6000#, and 9000#, ensuring suitability for both standard and high-pressure systems.

Order Your High-Quality Nipples Today!

Looking for top-quality Swage Nipples for your industrial applications? Our premium fittings ensure reliable performance, durability, and compliance with global standards. Contact us today for bulk pricing, customization options, and fast delivery!

---

---
